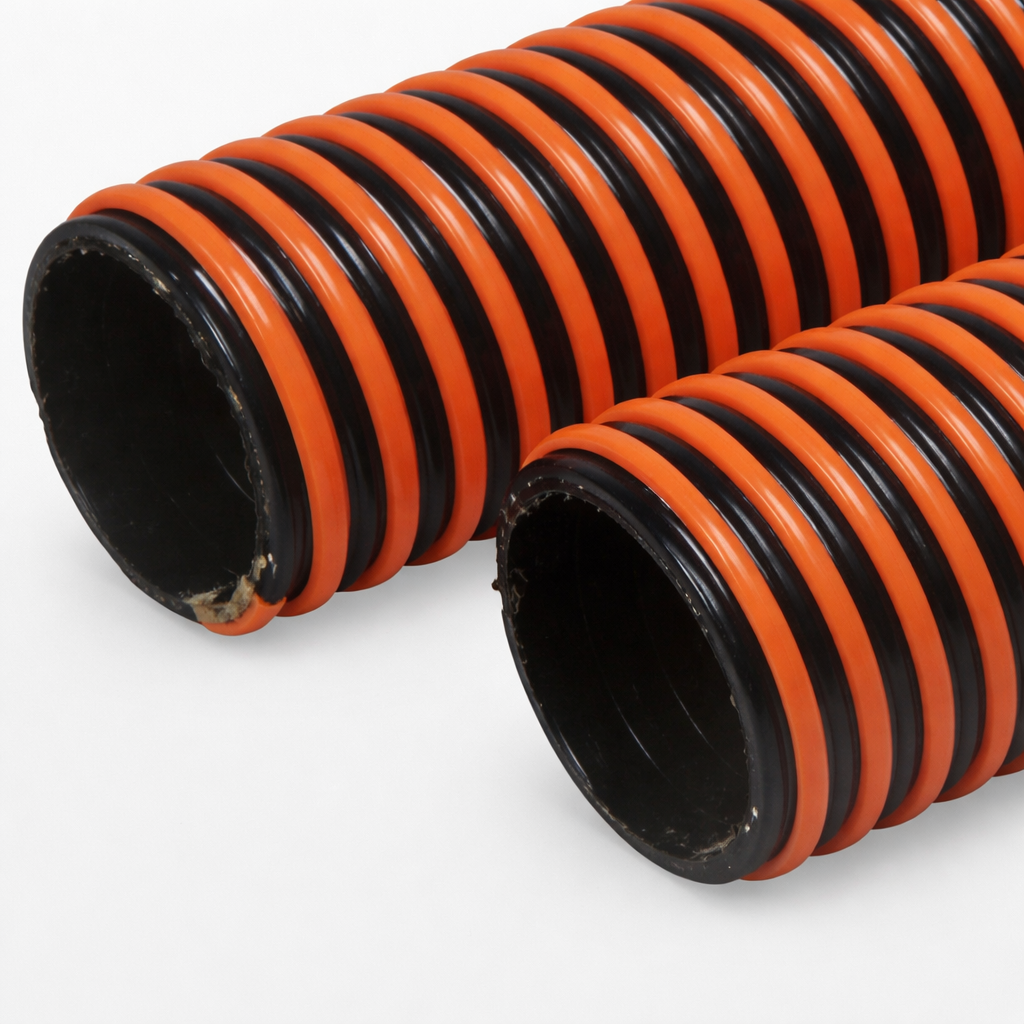

Red Dragon Hose
Description
Application
Suitable for cement slurry, wastewater, liquid fertilizer, sand suction, and fishery conveying.
Operating Temperature
Approximately -10°C to +50°C
| inch | 內徑 mm Inner Diameter (mm) |
外徑 mm Outer Diameter (mm) |
參考重量 g/m Approx. Weight (g/m) |
容許壓力(常溫) MPa 以下 Kgf/cm2 |
減壓變形溫度 -0.098MPa 時 (℃) |
容許彎曲半徑 mm 以上 |
每卷長度 M Length per Roll (M) |
|---|---|---|---|---|---|---|---|
| 2 | 50.8 | 68.5 | 1680 | 0.980 [10] | 65 | 600 | 20 or 50 |
| 2 1/2 | 63.5 | 86.5 | 2255 | 0.980 [10] | 65 | 750 | 20 or 50 |
| 3 | 76.2 | 99.0 | 2560 | 0.980 [10] | 65 | 750 | 20 or 50 |
| 4 | 101.6 | 128.0 | 3850 | 0.980 [10] | 65 | 1250 | 20 or 50 |
| 5 | 127.0 | 159.0 | 5990 | 0.980 [10] | 60 | 1700 | |
| 6 | 152.4 | 188.4 | 7900 | 0.980 [10] | 60 | 2000 | |
| 8 | 203.0 | 246.5 | 13480 | 0.980 [10] | 60 | 2250 | |
| 10 | 254.0 | 303.0 | 18730 | 0.980 [10] | 50 | 5000 | |
| 12 | 304.8 | 353.0 | 22500 | 0.980 [10] | 50 | 7500 |
