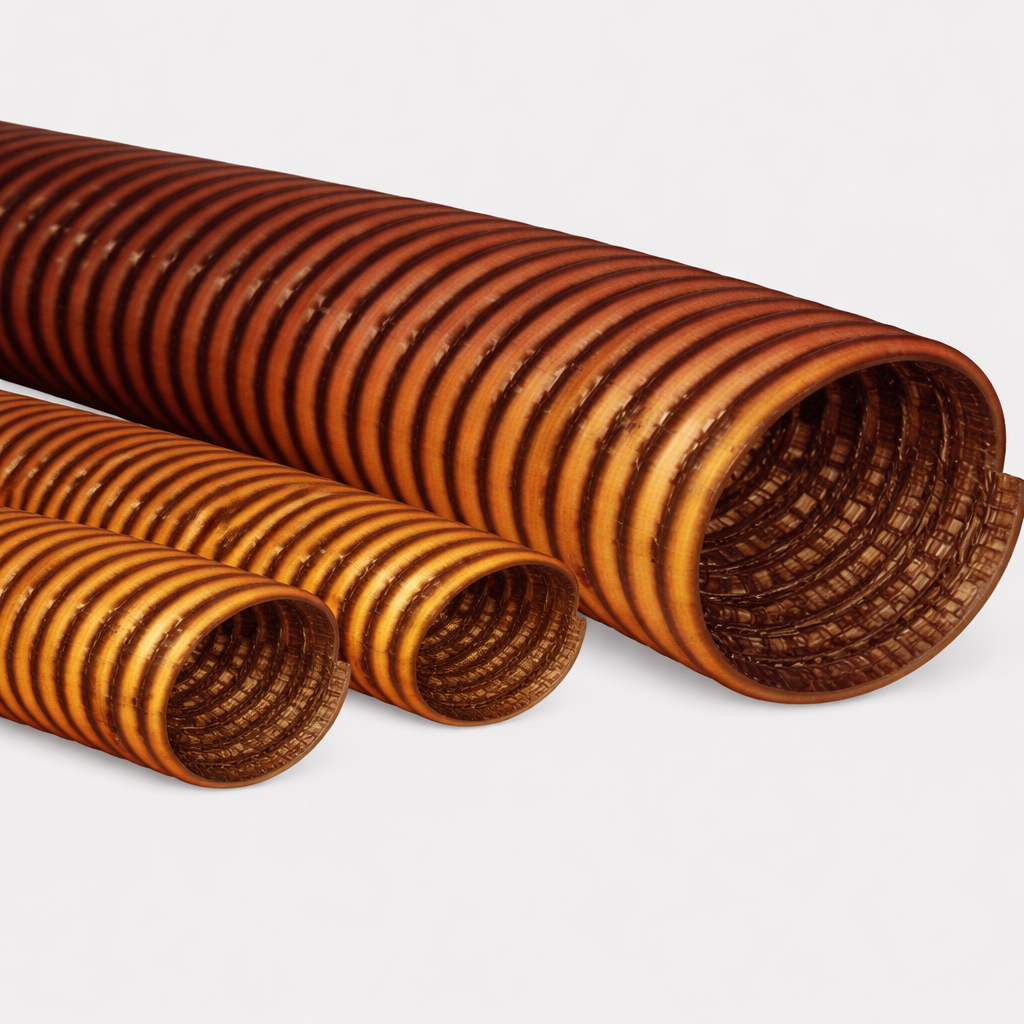

Multi-Purpose Suction Hose
Description
Features
Features high pressure resistance, high temperature resistance, and transparency. Extremely flexible and easy to handle.
Application
Widely used in agriculture, industry, and construction fields, suitable for suction and conveying of chemical powder and granular materials.
| inch | 內徑 mm Inner Diameter (mm) |
外徑 mm Outer Diameter (mm) |
長度 M Length (M) |
工作壓力 Kgf/cm2 Working Pressure (Kgf/cm2) |
爆破壓力 Kgf/cm2 Burst Pressure (Kgf/cm2) |
彎曲半徑 mm Bending Radius (mm) |
重量/捲 kg Weight / Roll (kg) |
|---|---|---|---|---|---|---|---|
| 2 | 50.8 | 64.5 | 50 | 5.0 | 18 | 210 | 47.5 |
| 2 1/2 | 63.5 | 78.0 | 50 | 5.0 | 17 | 270 | 62.5 |
| 3 | 76.2 | 91.5 | 40 | 5.0 | 17 | 360 | 64.0 |
| 4 | 101.6 | 120.0 | 20 | 4.5 | 15 | 550 | 52.0 |
| 5 | 127.0 | 152.0 | 20 | 4.0 | 15 | 650 | 84.0 |
| 6 | 152.4 | 182.0 | 10 | 3.5 | 13 | 800 | 60.0 |
