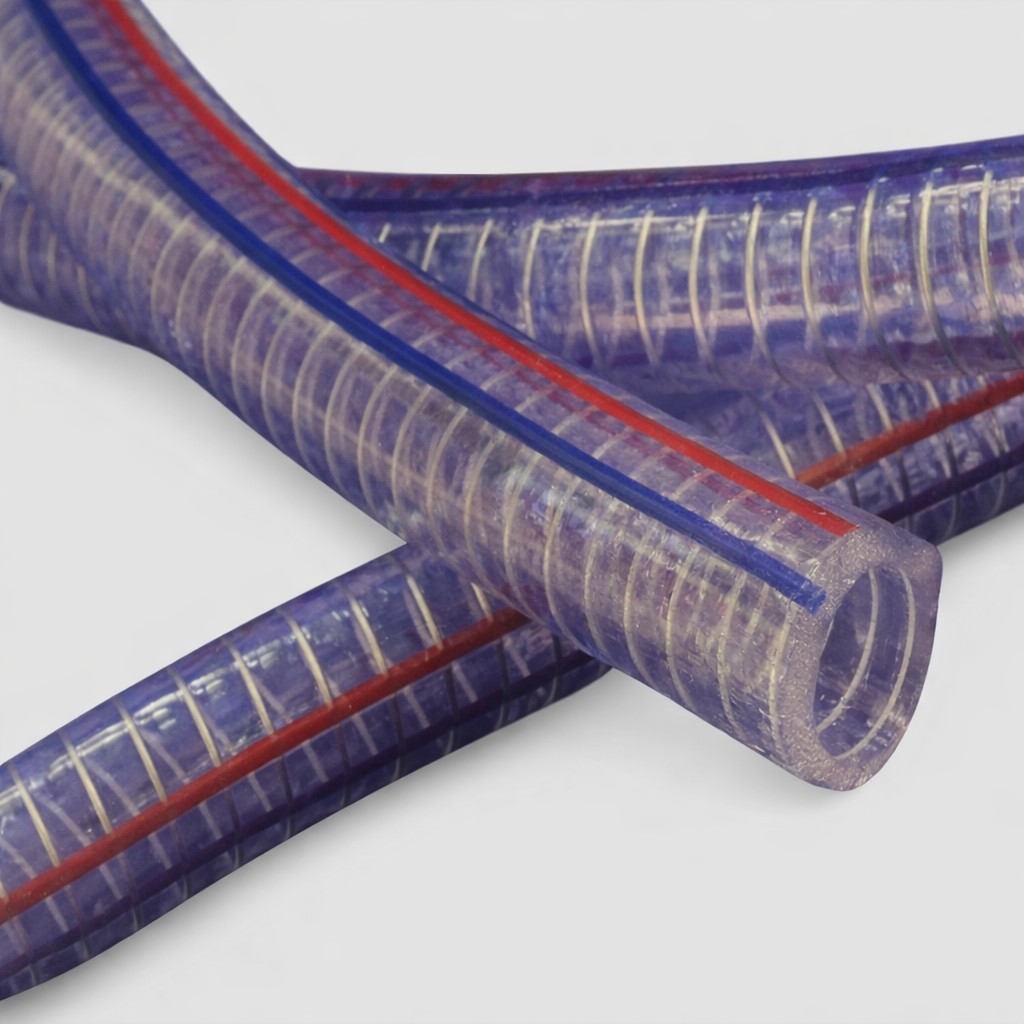

PVC Transparent Steel Wire Hose
Description
Application
-
Conveying oil, water, and various industrial chemical products
-
Suction and discharge of powder materials
-
Protective insulation hose for underground pipeline systems
-
Food conveying
-
Vacuum hose
Features
-
High transparency for easy monitoring of fluid flow
-
Oil-resistant, temperature-resistant, and corrosion-resistant, operating range from 0°C to 65°C
-
Smooth inner wall reduces fluid resistance
-
Flexible with good bendability
-
Easy to install
| inch | 內徑 mm Inner Diameter (mm) |
外徑 mm Outer Diameter (mm) |
工作壓力 kg Working Pressure (kg) |
爆破壓力 Kg Burst Pressure (Kg) |
長度 M Length (M) |
|---|---|---|---|---|---|
| 5/16 | 8 | 13.5 | 8 | 60 | 100 |
| 3/8 | 9 | 15 | 8 | 55 | 100 |
| 1/2 | 12 | 18 | 5 | 40 | 100 |
| 5/8 | 15 | 22 | 5 | 35 | 100 |
| 3/4 | 19 | 26 | 4 | 30 | 50 |
| 1 | 25 | 33 | 4 | 25 | 50 |
| 1 1/4 | 32 | 41 | 3 | 20 | 40 |
| 1 1/2 | 38 | 48 | 3 | 18 | 40 |
| 1 3/4 | 45 | 56 | 3 | 16 | 40 |
| 1 5/8 | 41 | 51 | 3 | 17 | 40 |
| 1 7/8 | 48 | 59 | 3 | 15 | 40 |
| 2 | 50 | 62 | 3 | 14 | 40 |
| 2 1/4 | 56 | 70 | 2 | 13 | 30 |
| 2 1/2 | 63 | 80 | 2 | 12 | 20 |
| 3 | 75 | 92 | 2 | 11 | 20 |
| 3 1/2 | 90 | 108 | 2 | 9 | 10 |
| 4 | 100 | 118 | 2 | 7 | 10 |
