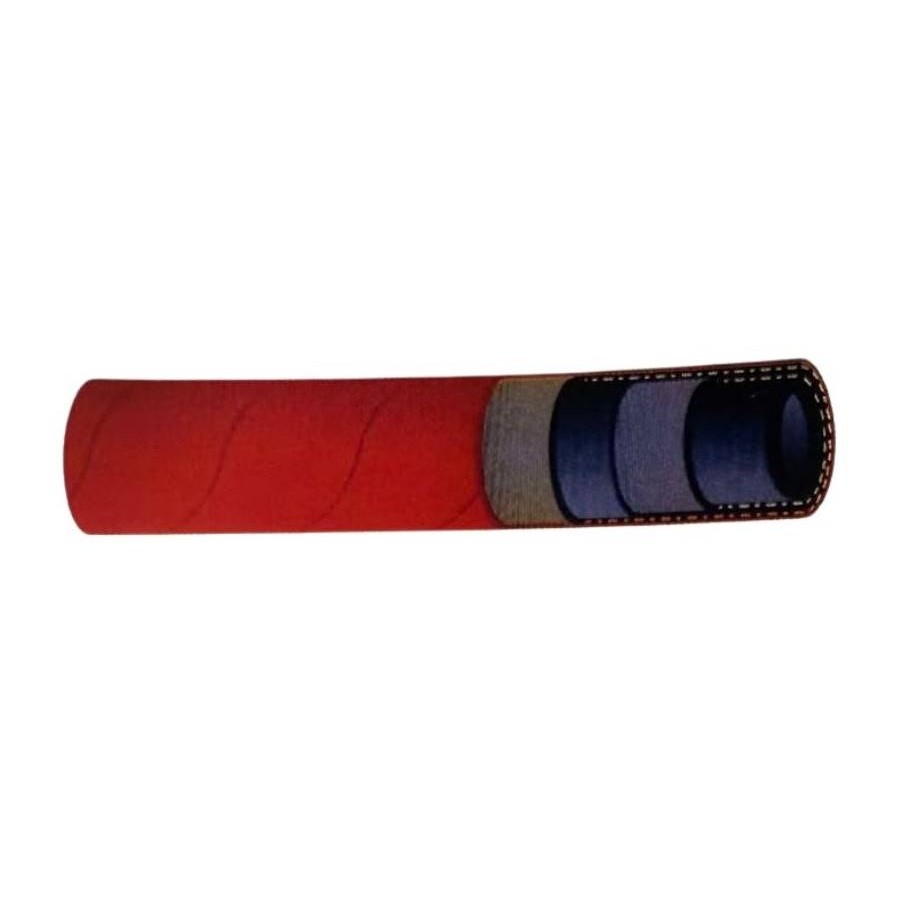

Steam Hose
Description
Application
For conveying high-temperature steam for hot water washing, ironing, and similar uses. Widely used in refineries, shipyards, chemical plants, steel mills, ironworks, and all types of industrial factories.
Inner Tube
Made of EPDM rubber resistant to high-temperature steam and chemicals.
Outer Cover
Made of EPDM rubber with excellent resistance to weathering, heat, ozone, and chemicals.
Reinforcement
High-strength copper-plated steel wire reinforcement.
Temperature Range
-40 °C to +235 °C
| HOSE SIZE (Inch) | ID (mm) | OD (mm) | WORKING PRESSURE (psi) | WORKING PRESSURE (bar) | APPROX Kg/m |
|---|---|---|---|---|---|
| 1/2 | 13 | 27.4 | 250 | 17 | 0.62 |
| 3/4 | 19 | 33.4 | 250 | 17 | 0.80 |
| 1 | 25 | 41.8 | 250 | 17 | 1.27 |
| 1 1/4 | 32 | 48.6 | 250 | 17 | 1.52 |
| 1 1/2 | 38 | 54.9 | 250 | 17 | 1.74 |
| 2 | 51 | 67.6 | 250 | 17 | 2.35 |
| 2 1/2 | 63 | 80.3 | 250 | 17 | 2.84 |
| 3 | 76 | 97.6 | 250 | 17 | 5.55 |
| 4 | 102 | 123.6 | 250 | 17 | 7.21 |
