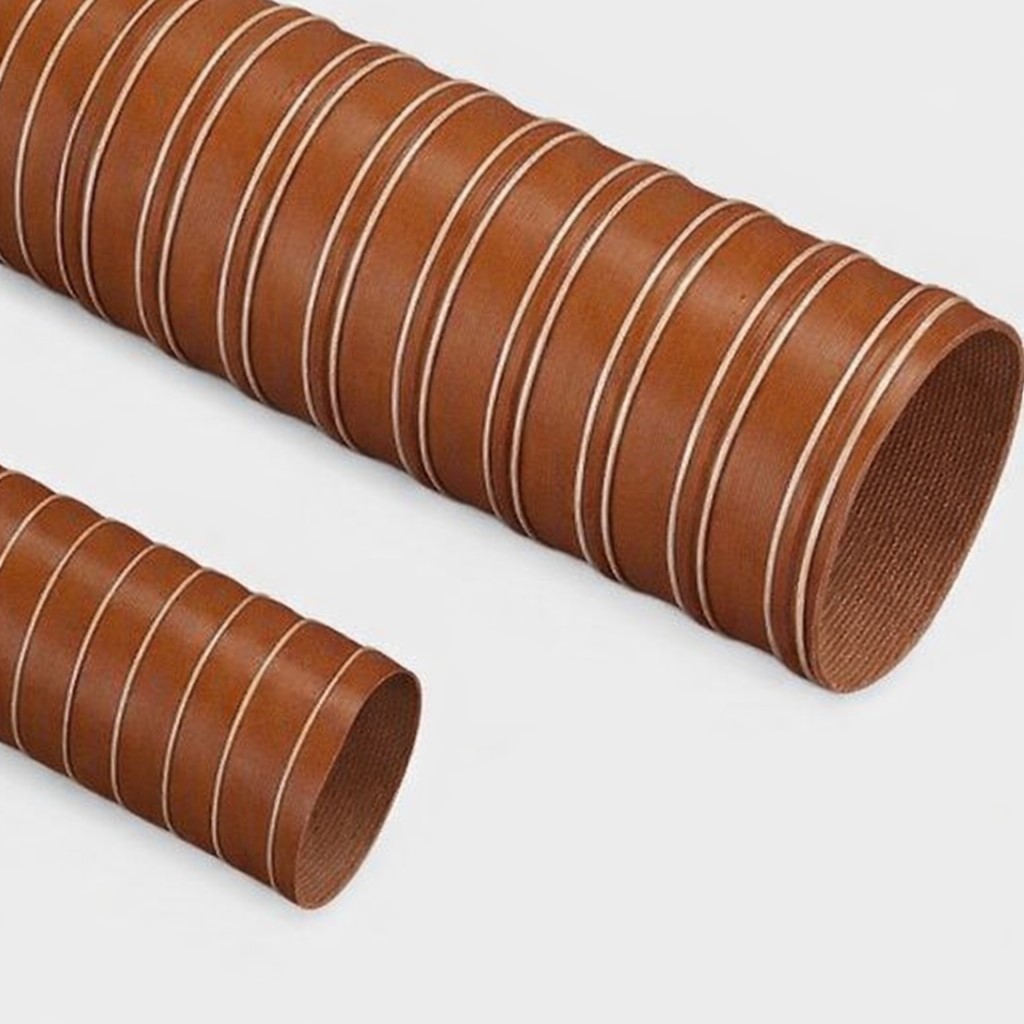

Silicone High-Temperature Air Duct
Description
Application
Used in drying equipment, UV, dehumidification equipment, vehicles, aircraft, engines, aerospace, and various industrial machinery. High-temperature, low air resistance, good insulation, easy installation, lightweight, and high compression ratio for air supply and exhaust ducts.
Operating Temperature
-60°C to +250°C
| inch | 內徑 mm Inner Diameter (mm) |
每條長度 M Length per Piece (M) |
工作壓力 Kgf/cm2 Working Pressure (Kgf/cm2) |
爆破壓力 Kgf/cm2 Burst Pressure (Kgf/cm2) |
|---|---|---|---|---|
| 1 1/2 | 38 | 4 or 6 or 8 | 4.0 | 12.0 |
| 2 | 50 | 4 or 6 or 8 | 4.0 | 12.0 |
| 2 1/2 | 65 | 4 or 6 or 8 | 3.5 | 10.5 |
| 3 | 75 | 4 or 6 or 8 | 3.0 | 9.0 |
| 4 | 100 | 4 or 6 or 8 | 2.8 | 8.5 |
| 5 | 125 | 4 or 6 or 8 | 2.5 | 7.5 |
| 6 | 150 | 4 or 6 or 8 | 2.3 | 7.0 |
| 8 | 200 | 4 or 6 or 8 | 2.0 | 6.0 |
| 10 | 250 | 4 or 6 or 8 | 1.6 | 5.0 |
| 12 | 300 | 4 or 6 or 8 | 1.5 | 4.5 |
