Sand and Mud Hose
Description
Description

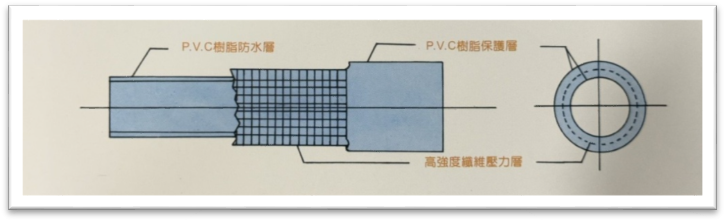

The sand and mud hose consists of three layers: an inner waterproof layer, a middle micro-fiber pressure layer, and an outer protective layer.
Applications
The sand and mud hose is suitable for construction, sand discharge, drainage, concrete chutes, and agricultural irrigation. It can also be used for sand and water discharge in shipbuilding and mining industries.
Test Results
The hose maintains toughness and flexibility after 168 hours at -40°C without deterioration and after 168 hours at 80°C without deformation.
| inch | 內徑 (mm) | 外徑 (mm) | 工作壓力 (kg) | 爆破壓力 (kg) | 長度 (M) |
|---|---|---|---|---|---|
| 1 1/2" | 40 | 1.2 | 3.5 | 10.5 | 100 |
| 2" | 50 | 1.2 | 3 | 9 | 100 |
| 2 1/2" | 65 | 1.3 | 3 | 9 | 100 |
| 3" | 77 | 1.3 | 3 | 9 | 100 |
| 4" | 103 | 1.3 | 2.5 | 7.5 | 100 |
| 5" | 128 | 1.4 | 2 | 6 | 100 |
| 6" | 153 | 1.6 | 2 | 6 | 100 |
| 8" | 207 | 1.6 | 2 | 6 | 100 |
